YSX321SC

Automotive Electronics
Frequency Range: 8MHz-66MHz
Dimensions: 3.2*2.5mm
Rohs Status: Compliant
Reliability: AEC-Q200
Applications: GPS,Automotive electronics,Industrial electronics
Sample Download PDF
Parameter Table

Item / Type YSX321SC
Standard Frequency 8.0 to 66 MHz
Vibration Mode AT Fundamental
Load Capacitance 8pF, 12pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 30 ppm, or specify
Frequency Versus Temperature Characteristics ± 50 ppm, or specify
Operating Temperature - 40 ~ + 125℃, or specify
Storage Temperature - 40 ~ + 125℃, or specify
Shunt Capacitance 3 pF Max.
Level of Drive 200 μW Max.
Frequency Aging (at 25 ℃) ± 2 ppm / year Max.

Part Number Guide             XC32258MSB4SA-17
Quartz Crystal Resonator Series Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp  -  Remark
X C 3.2 x 2.5 8M S B 4 S A - 17

Equivalent Series Resistance(ESR)

Fundamental
8.0~9.9MHz 800 Ω Max.
10.0 ~10.9MHz 250 Ω Max
11.0 ~11.9MHz 150 Ω Max
12.0 ~12.9 MHz 100 Ω Max
13.0~15.9 MHz 70 Ω Max.
21.0 ~29.9 MHz 60 Ω Max
30.0 ~66.0 MHz 50 Ω Max.

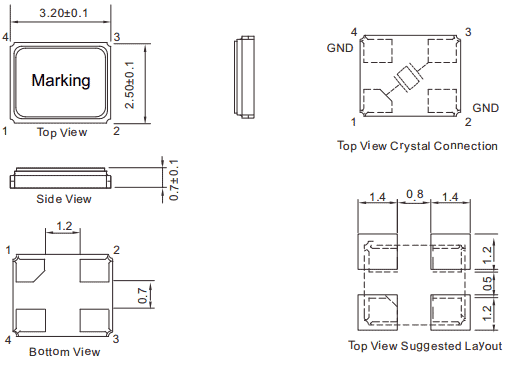

External dimensions



(Unit: mm)
