YSX221SL

Frequency Range: 12-54MHz
Dimensions: 2.5*2.0mm (2520)
Package: 3000 pieces/Reel
ROHS STATUS: Compliant
Applications: Mobile phone, Bluetooth, W-LAN ISM band radio
Sample Download PDF
Parameter Table

Item / Type YSX221SL
Nominal Frequency Range 12 ~ 54 MHz
Vibration Mode AT Fundamental
Load Capacitance 12pF, 20pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 20 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 ~ + 70 ℃, - 40 ~ + 85 ℃, or specify
Storage Temperature -40 ~ +85 ℃, or specify
Shunt Capacitance 3 pF Max.
Level of Drive  1-200 μW Max (100μW typical)
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.

Part Number Guide            X252012MSB4SC
Quartz Crystal Resonator Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp
X 2.5 x 2.0 12M S B 4 S C

Equivalent Series Resistance(ESR)

Fundamental
12 to 14 MHz 150Ω Max.
14 to 30 MHz 100Ω Max.
30 to 48 MHz 60Ω Max.
48 to 54 MHz 50Ω Max.

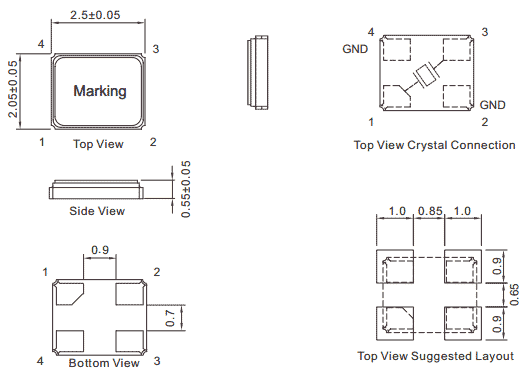

External dimensions


(Unit: mm)
