YSX1612SL

Standard Frequency: 24MHz-60MHz
External dimensions: 1.6*1.2mm (1612)
Small Size Crystal Resonator
ROHS STATUS: Compliant
Applications: mobile phone, Bluetooth, Bluetooth, W-LAN ISM
band radio, clock for MPU GPS, smart phone.
Sample Download PDF
Parameter Table

Item / Type YSX1612SL
Nominal Frequency Range 24 MHz to 60 MHz
Vibration Mode AT Fundamental
Load Capacitance 8pF, 10pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 30 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify
Storage Temperature -40 ~ +85 ℃, or specify
Shunt Capacitance 3 pF Max.
Level of Drive  50 μW Max
Frequency Aging (at 25 ℃) ± 2 ppm / year Max.

Part Number Guide            X161224MOB4SI
Quartz Crystal Resonator Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp
X 1.6 x 1.2 24M O B 4 S I

Equivalent Series Resistance(ESR)

Fundamental
24 to 40 MHz 150Ω Max.
41 to 60 MHz 100Ω Max.

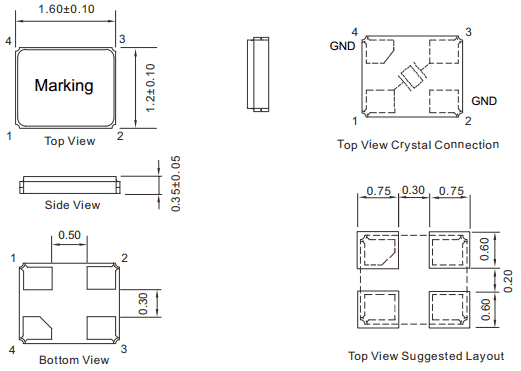

External dimensions


(Unit: mm)
