YSX1612SC

Automotive Electronics
Frequency Range: 24MHz-60MHz
Dimensions: 2.0*1.6mm
Rohs Status: Compliant
Reliability: AEC-Q200
Applications: GPS, Automotive electronics, Industrial electronics
Sample Download PDF
Parameter Table

Item / Type YSX1612SC
Standard Frequency 24 to 60 MHz
Vibration Mode AT Fundamental
Load Capacitance 8pF, 10pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 30 ppm, or specify
Frequency Versus Temperature Characteristics ± 50 ppm, or specify
Operating Temperature - 40 ~ + 125℃, or specify
Storage Temperature - 40 ~ + 125℃, or specify
Shunt Capacitance 3 pF Max.
Level of Drive 50 μW Max.
Frequency Aging (at 25 ℃) ± 2 ppm / year Max.

Part Number Guide             XF161224MKB4SA-*
Quartz Crystal Resonator Series Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp  -  Remark
X F 1.6 x 1.2 24M K B 4 S A - *

Equivalent Series Resistance(ESR)

Fundamental
24.0 ~40.0 MHz 150 Ω Max.
41.0~ 66.0 MHz 100 Ω Max.

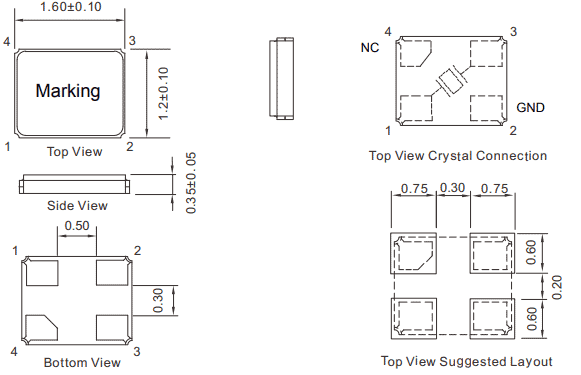

External dimensions



(Unit: mm)
