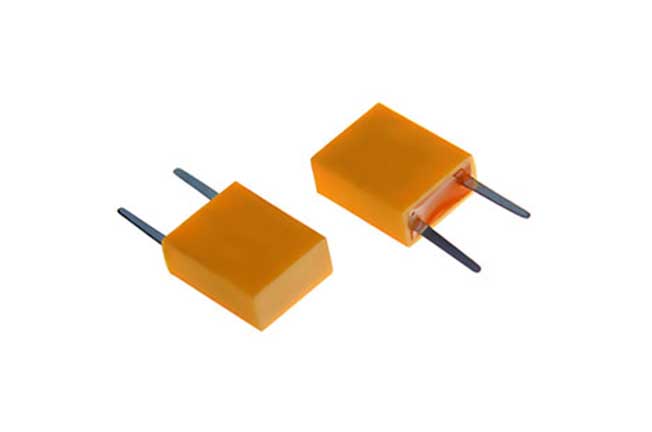

ZTB455E

Fixed Frequency: 455KHz
Package: 500 pieces/Bag
Promise: Lifetime warranty and technical support
Support: Free samples available
ROHS STATUS: Compliant
Applications: PC, STB, LCDM, and Cable Modem
Sample Download PDF
Parameter Table

Item / Type ZTB455E/CRB455E
Oscillation Frequency (Fosc) 455±2KHz
Resonant Impedance(Ro) 30Ω max.
Capacitance (Co) 285pF ±20%
Temperature Characteristics
of Oscillation Frequency 		 ±0.3% max. (-20℃ to +80℃)
Rated Voltage 50 VDC max.
Maximum Input Voltage 15 Vp-p
Insulation Resistance 1000MΩ min.
Operation Tempeature -20℃ to +80℃
Storage Temperature -40℃ to +85℃
Aging Rate Fosc ±0.5% max.

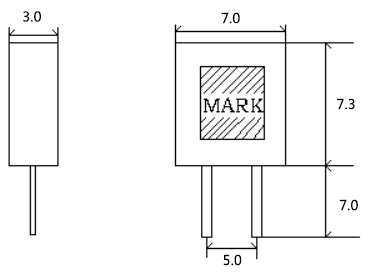

External dimensions



(Unit: mm)
