YT-38

Fixed frequency: 32.768KHz

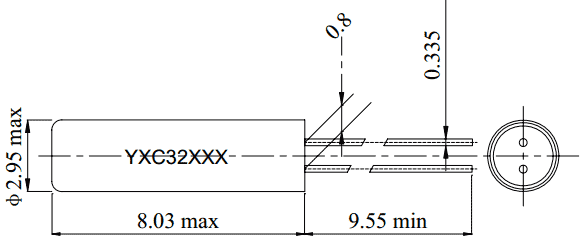

Dimensions: 3.0*8.0mm (3080)
Package: 1000 pieces/Bag
Support: free samples available
ROHS STATUS: Compliant
Applications: Clock and Microcomputer

Sample Download PDF

Parameter Table

Item / Type	YT-38
Nominal Frequency Range	32.768KHz
Load Capacitance	12.5pF, or specify
Frequency Tolerance (at 25 ℃)	± 10 ppm , ± 20 ppm , or specify
Frequency Versus Temperature Characteristics	0-120ppm, or specify
Turnover Temperature	-(0.036±0.01)ppm/℃²
Operating Temperature	- 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify
Storage Temperature	-40 ~ +85℃
Shunt Capacitance	1.8pF Max
Level of Drive	1 ~ 100 μW ( 1.0 μW Tvp）
Frequency Aging (at 25 ℃)	± 3 ppm / year Max.
Insulation Resistance	More Than 500M at DC 100V
Equivalent Series Resistance (ESR)	40KΩ Max
