YSX530GA

Frequency Range: 8MHz to 54MHz
Dimensions: 5.0*3.2mm (5032)
Package: 1000 pieces/Reel
Promise: Lifetime warranty and technical support
ROHS STATUS: Compliant
Applications: Portable PC, PDA, DSC and USB interface card.
Sample Download PDF
Parameter Table

Item / Type YSX530GA
Nominal Frequency Range 8 to 54 MHz
Vibration Mode AT Fundamental
Load Capacitance 12pF, 20pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 20 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 to + 70 ℃ , - 40 to + 85 ℃, or specify
Storage Temperature -40 to +85 ℃, or specify
Shunt Capacitance 7 pF Max.
Level of Drive 1 ~ 100 μW (10μW typical)
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.
Insulation Resistance More Than 500MΩ at DC 100V

Part Number Guide             X503212MSD2GC
Quartz Crystal Resonator Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Frequency Stability
(ppm)		 Pin Material Operating Temp
X 5.0 x 3.2 12M S D 2 G C

Equivalent Series Resistance(ESR)

Fundamental
8 to 12 MHz 60 Ω to 80 Ω
12 to 25 MHz 40 Ω to 60 Ω
25 to 54 MHz 30 Ω to 40 Ω

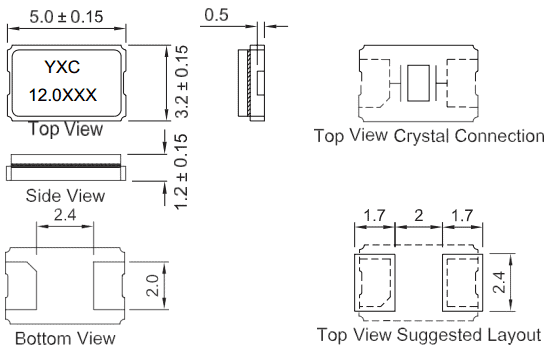

External dimensions



(Unit: mm)
