YSX321SL

Frequency range: 8 to 64MHz
Dimensions: 3.2*2.5mm (3225)
Package: 3000 pieces/Reel
ROHS STATUS: Compliant
Applications: Mobile phone, Bluetooth, W-LAN ISM band radio
Sample Download PDF
Parameter Table

Item / Type YSX321SL
Nominal Frequency Range 8 ~ 64 MHz
Vibration Mode AT Fundamental
Load Capacitance 12pF, 20pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm,± 20 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify
Storage Temperature -40 ~ +85 ℃, or specify
Shunt Capacitance 7 pF Max.
Level of Drive 1 ~ 100 μW (100μW typical)
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.
Insulation Resistance More Than 500MΩ at DC 100V

Part Number Guide            X322512MSB4SC
Quartz Crystal Resonator Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp
X 3.2 x 2.5 12M S B 4 S C

Equivalent Series Resistance (ESR)

Fundamental
8 to 11.2892MHz 150Ω Max.
12 to 16 MHz 80Ω Max.
17 to 64 MHz 50Ω Max.

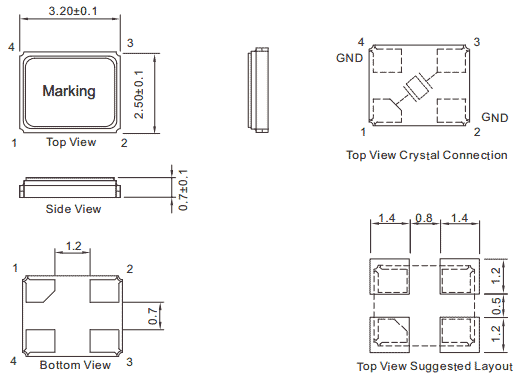

External dimensions



(Unit: mm)
