YSX211SL

Frequency range: 16MHz-54MHz
Dimensions: 2.0*1.6mm (2016)
Package: 3000 pieces/Reel
ROHS STATUS: Compliant
Applications: Mobile phone, Bluetooth, W-LAN ISM band radio
Sample Download PDF
Parameter Table

Item / Type YSX211SL
Nominal Frequency Range 16 ~ 54 MHz
Vibration Mode AT Fundamental
Load Capacitance 8pF, 9pF, 12pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 15 ppm, ± 20 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 ~ + 70 ℃, - 40 ~ + 85 ℃, or specify
Storage Temperature -40 ~ +85 ℃, or specify
Shunt Capacitance 3 pF Max.
Level of Drive  10-200 μW Max (10μW typical)
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.

Part Number Guide            X201612MOB4SC
Quartz Crystal Resonator Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp
X 2.0 x 1.6 12M O B 4 S C

Equivalent Series Resistance(ESR)

Fundamental
16 to 30 MHz 100Ω Max.
31 to 54 MHz 80Ω Max.

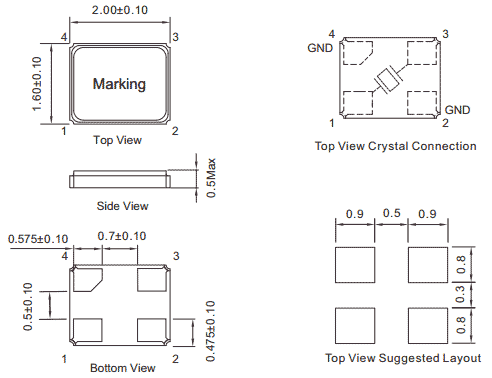

External dimensions


(Unit: mm)
