YSX1610SK

32.768KHz Passive crystal oscillator
Dimensions: 1.6*1.0mm (1610)
Small size crystal
ROHS STATUS: Compliant
Applications:Smart watch,Intelligent locks

Item / Type YSX1610SK
Standard Frequency 32.768KHz
Load Capacitance 12.5pF, or specify
Frequency Tolerance(at 25 ℃)  ± 20 ppm , or specify
Parabolic Coefficient (B) ( - 0.03 ± 0.01 ) * 10-6 / ℃2
Turnover Temperature (Ti) 25 ℃ ± 5℃
Operating Temperature  - 40 ~ + 85 ℃
Shunt Capacitance (C0) 1.3pF typical
Motional Capacitance (C1) 7.5fF typical
Level of Drive 0.1 μW
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.
Storage Temperature -55 ~ +125℃
Equivalent Series Resistance(ESR) 90KΩ Max

Part Number Guide            X161032768KGB2SI
Quartz Crystal Resonator Dimensions
(mm)
Frequency
(Hz)
Load Capacitance
(pF)
Frequency Stability
(ppm)
Pin Material Operating Temp
X 1.6 x 1.0 32.768K G B 2 S I

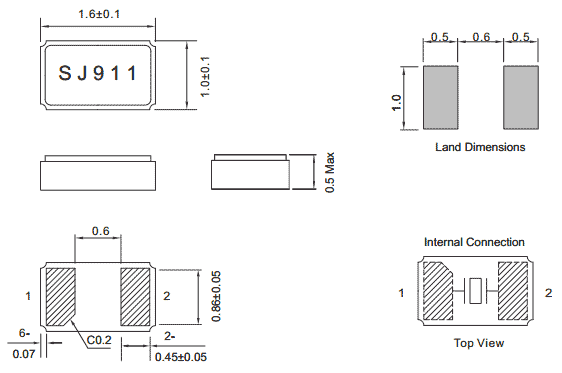

External dimensions


(Unit: mm)
