YSR433S503

Fixed Frequencies: 433.92MHz
Dimensions: 5.0*3.5mm (5035)
Package: 1000 pieces/Bag
Support: Free samples available
ROHS STATUS: Compliant
Applications: Consumer electroincs,communications

Item Unites Minimum Typical Minimum
Center Frequency MHz 433.845 433.920 433.995
Insertion Loss dB   1.6 2.2
Quality Factor Unload Q   8300 12000
50Ω Loaded Q   850 1500
Temperature Stability Turnover Temperature 10 25 40
Freq.temp.Coefficient ppm/ ℃2   0.032
Frequency Aging ppm/ yr   <±10
DC. Insulation Resistance 1.0
RF Equivalent RLC Model Motional Resistance R1 Ω   18 26
Motional Inductance L1 μ H   79.82
Motional Capacitance C1 fF   1.685
Transducer Static Capacitance C0 pF   2.3

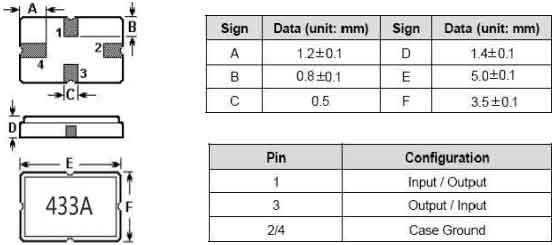

 External dimensions




(Unit: mm)
