YSO1512SR

Frequency Range: 1-100MHz, CMOS output

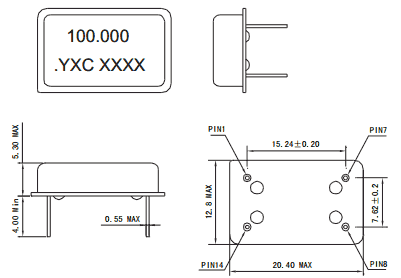

Dimensions: 20.4*12.8*5.3mm
Package: 100 pieces/Reel
ROHS STATUS: Compliant
Applications: Monitor, computers, wireless lan card and CD player.

Sample Download PDF

Parameter Table

Item / Type	YSO1512SR
Output Frequency Range	1MHz to 100MHz
Output Type	CMOS
Supply Voltage	3.3V/5V, or specify
Oscillator Mode	Fundamental
Frequency Tolerance (at 25 ℃)	± 20 ppm, ± 25 ppm, or specify
Output Load	15pF, or specify
Operating Temperature	- 20 ~ + 70 ℃ , -40 ~ +85 ℃, or specify
Storage Temperature	-40 ~ +85 ℃, -55 ~ + 125 ℃
Voltage Vol ( Max. ) / Vol ( Min. )	90%Vdd min. /10%Vdd max
Symmetry	40~60% Standard
Rise ( Tr ) / Fall ( Tf ) Time	10ns Max.
Start-up Time	10ms Max.
Supply Current	30mA Max. (<50MHz)
Frequency Aging (at 25 ℃)	± 3 ppm / year Max.
