YSO130HR

Frequency Range: 1-100MHz, CMOS output
Dimensions: 3.2*2.5, 5.0*3.2, 7.0*5.0mm
Package: 1000 pieces/Reel
ROHS STATUS: Compliant
Applications: Wireless communication, PC and LCDM
Sample Download PDF
Parameter Table

Item / Type YSO130HR
Output Frequency Range 1MHz to 100MHz
Output Type CMOS
Supply Voltage 5.V, or specify
Oscillator Mode Fundamental
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 20 ppm, or specify
Output Load 15pF, or specify
Operating Temperature -40 ~ +85 ℃, or specify
Frequency Versus Temperature Characteristics ±20 ppm, ± 30 ppm, ± 50 ppm, or specify
Storage Temperature - 55 ~ + 125 ℃
Voltage Vol ( Max. ) / Vol ( Min. ) 90%Vdd min. /10%Vdd max
Symmetry 45~55%
Rise ( Tr ) / Fall ( Tf ) Time 4ns Max.
Start-up Time 3ms Max.
Supply Current See Below
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.

Part Number Guide           OH322528.888MFBA4SL
Quartz Crystal Oscillator Type Code Dimensions
(mm)		 Frequency
(Hz)		 Supply Voltage
(V)		 Stability
(ppm)		 Output Pin Material Operating Temp
O H 3.2 x 2.5 28.888M F B A 4 S L

External dimensions

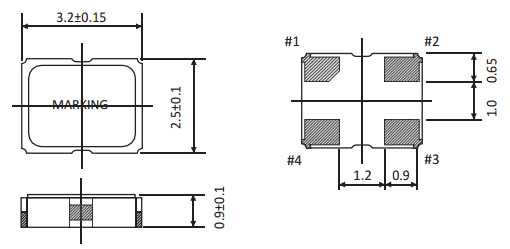

                          3.2x2.5x1.00mm

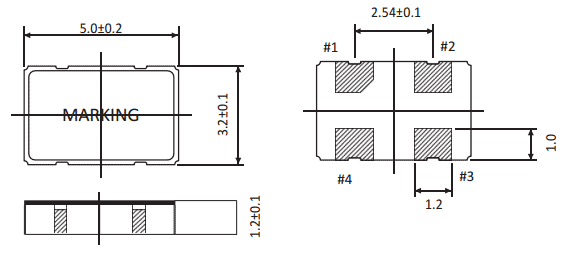

              5.0x3.2x1.20mm

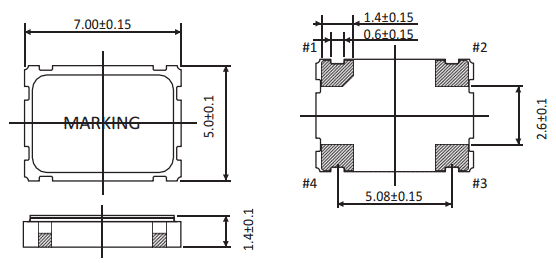

                7.0x5.0x1.40mm

(Unit: mm)
