YSO120TK

FIXED FREQUENCIES: 32.768KHz
DIMENSIONS: 1.6x1.2, 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0mm
PACKAGE: 1000 pieces/Reel
ROHS STATUS: Compliant
Applications: WLAN, Bluetooth, RTC, DSL and other IT product.
Sample Download PDF
Parameter Table

Item / Type YSO120TK
Output Frequency Range 32.768KHz
Output Type CMOS
Supply Voltage 1.8V ~ 3.3V
Oscillation Mode Fundamental
Frequency Tolerance （at 25 ℃） ± 10 ppm , 20ppm, or specify
Output Load 15pF, or specify
Operating Temperature Range  - 40 ~ + 85 ℃, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, ± 30 ppm, ± 50 ppm, or specify
Storage Temperature -55 ~ +125 ℃, or specify
Voltage Vol ( Max. ) / Vol ( Min. ) 90%Vdd min./10%Vdd max
Symmetry 45~55%
Rise ( Tr ) / Fall ( Tf ) Time 30ns Max
Start-up Time 3ms Max
Supply Current See Below
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.

Part Number Guide           OK252032.768KJBA4SL
Crystal Oscillator Type Code Dimensions
(mm)		 Frequency
(Hz)		 Voltage
(V)		 Stability
(ppm)		 Output Pin Material Operating Temp
O K 2.5 x 2.0 32.768K J B A 4 S L

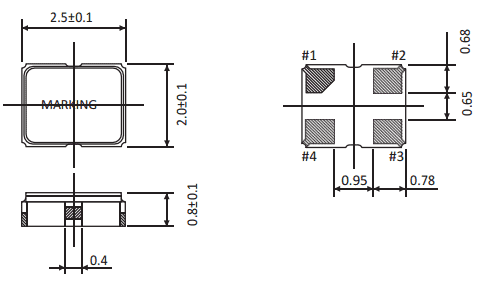

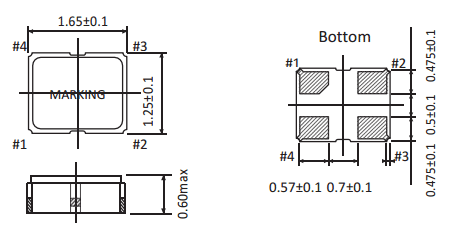

External dimensions
                           1.6x1.2x0.6mm

              2.0x1.6x0.80mm


                   2.5x2.0x0.90mm


                3.2x2.5x1.00mm


    5.0x3.2x1.20mm


      7.0x5.0x1.30mm

(Unit: mm)
