TSX-3225

Frequency Range: 16.0000-48.0000MHz
Hot-Sale Frequencies: 16MHz, 24MHz, 25MHz
ROHS STATUS: Compliant

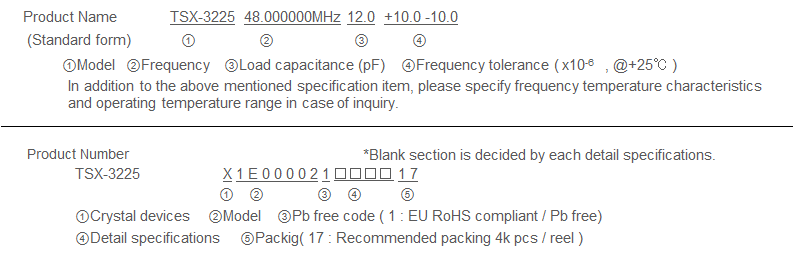

PN: X1E000021012700, X1E000021016300
Applications: Mobile phone, Bluetooth, W-LAN ISM band radio
Sample Download PDF
Parameter Table

Item Symbol For RF Reference Condition/Remarks
Nominal frequency range f_nom 16.000MHz to 48.000MHz Fundamental For the out of standard specifications, please contact us for inquiries.
Storage temperature T_stg -40°C to +125°C Store as bare product.
Operating temperature T_use -40°C to +85°C (+105 °C) Please contact us about +85 °C < T_use
Level of drive DL 200µW Max. Recommended: 10µW
Frequency tolerance f_tol ±10 × 10-6

+25 °C Please contact us for requirements not

listed in this specifications.  *1
Frequency versus temperature characteristics f_tem ±10 × 10-6/-20°C to +75°C

Please contact us for requirements not

listed in this specifications.  *1
Load capacitance CL 7pF to ∞ Please specify.
Motional resistance (ESR) R1 As per below table -40°C to +85°C, DL = 100µW
Frequency aging f_age ±1 × 10-6 / year Max. *1 +25°C, First year




Motional resistance (ESR)


Frequency Motional resistance
16.0MHz ≤ f_nom < 21.0MHz 60Ω Max.
21.0MHz ≤ f_nom ≤ 48.0MHz 40Ω Max.

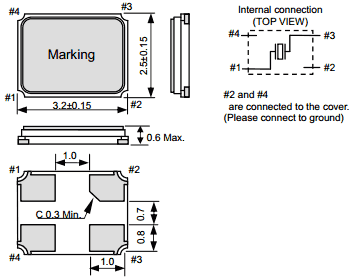

External dimensions



(Unit: mm)


Footprint (Recommended)



(Unit: mm)
