SC-20S

32.768KHz Passive crystal oscillator

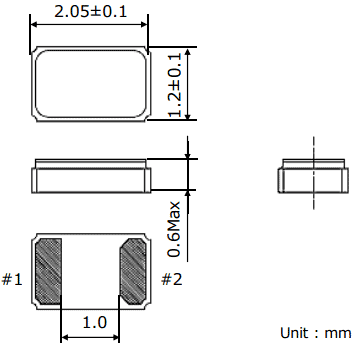

Dimensions: 2.0*1.2mm (2012)
Small size crystal
Pb-free
Complies with EU RoHS directive
Applications in mobile phone,Notebook and DSC

Sample Download PDF

Parameter Table

Item	Symbol	Specifications	Conditions Note
Nominal Frequency	f_nom	32.768kHz
Frequency Tolerance	f_tol	±20×10^-6	Please specify
Turnover Temperature	Ti	+25±5℃
Parabolic Coefficient	B	(-0.030±10%)×10^-6/℃²
Load Capacitance	CL	6pF~12.5pF
Motional Resistance (ESR)	R1	70kΩ max.
Absolute Max. Drive Level	Dlmax.	1.0μW max.
Drive Level	DL	0.1μW typ.
Shunt Capacitance	C0	1.3pF typ.
Frequency Ageing	f_age	±3×10^-6	+25±3℃, First Year
Operating Temperature	T_use	-40~+80℃
Storage Temperature	T_stg	-55~+125℃	Piece part basis
