DSX321G

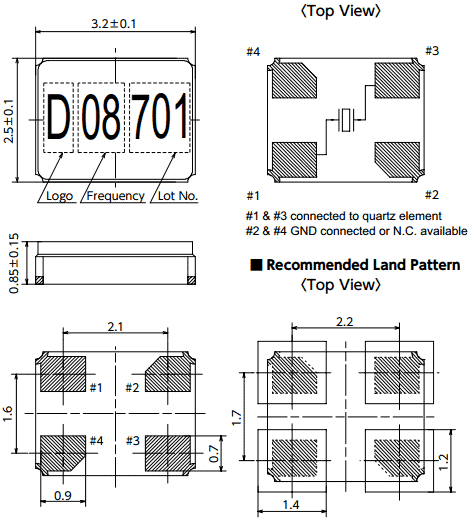

Miniature and lightweight SMD crystal resonator. Height (over 12MHz): 0.75mm
Moisture prevention packing is unnecessary.
AEC-Q200 Compliant
Fully lead free option available.
PN: 1C208000BC0R 1C208000CE0Q

Sample Download PDF

Parameter Table

Item	DSX321G
Frequency Range	7.9 to 9MHz	9 to 9.8MHz	9.8 to 11MHz	11 to 12MHz	12 to 20MHz	20 to 27MHz	27 to 64MHz
Overtone Order	Fundamental
Load Capacitance	8pF, 10pF, 12pF
Drive Level	10μW（200μW max.）
Frequency Tolerance	±20×10^-6 （at 25℃）
Series Resistance	400Ω max.	300Ω max.	150Ω max.	100Ω max.	80Ω max.	60Ω max.	50Ω max.
Frequency Characteristics over Temperature	±30×10^-6/ −30 to ＋85℃（Ref. to 25℃）
Storage Temperature Range	−40 to ＋85℃
Packing Unit (1)	3000pcs./reel（φ180）
