CSTCR_G

SMD Type Ceramic Resonators
Frequency: 4.00 to 7.99MHz
Size: 4.5 x 2.0 x 1.2mm
High-density mounting is made possible by the small package and the elimination of the need for an external load capacitor.
Sample Download PDF
Parameter Table

Item  Specification
Operating Temperature Range -20 to +80°C
Storage Temperature Range -55 to +85°C
D.C. Voltage D.C.6V Max
A.C. Voltage 15Vp-p Max
Withstanding Voltage D.C.100V Max
Nominal Oscillating Frequency 4MHz to 7.99MHz
Initial Frequency Tolerance *1 *2 ±0.50% Max
Frequency Shift by Temperature (at 25°C) ±0.20% Max (-20 to +80°C)
Oscillating Frequency Aging *3 ±0.10% Max
Resonant Impedance *2 60Ω max
Built-in Load Capacitance 39pF ±20% max
Insulation Resistance 500MΩ

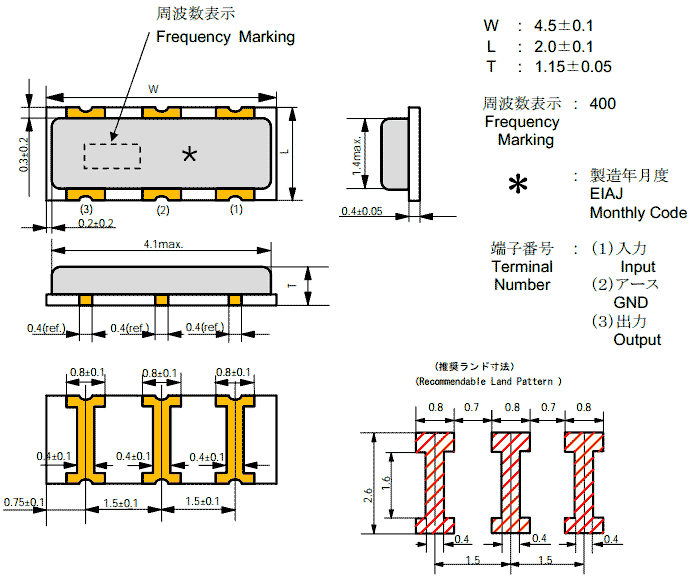

External dimensions



(Unit: mm)
