YST310S

Fixed frequency: 32.768KHz

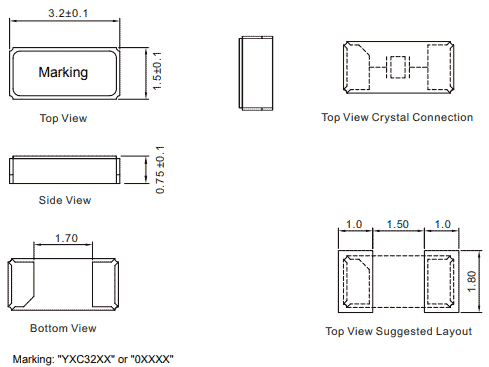

Dimensions: 3.2*1.5mm (3215)
Package: 3000 pieces/Reel
ROHS STATUS: Compliant
Applications: Small communication devices

Parameter Table

Item / Type	YST310S
Standard Frequency	32.768KHz
Frequency Tolerance (at 25 ℃)	± 10 ppm , or specify
Load Capacitance (CL)	12.5pF, or specify
Parabolic Coefficient (B)	( - 0.03 ± 0.01 ) * 10^-6 / ℃²
Turnover Temperature (Ti)	25 ℃ ± 5℃
Operating Temperature	- 40 ~ + 85 ℃
Shunt Capacitance (C0)	1.0pF typical
Motional Capacitance (C1)	3.4fF typical
Level of Drive	1.0 μW
Frequency Aging (at 25 ℃)	± 3 ppm / year Max.
Storage Temperature	-55 ~ +125℃
Equivalent Series Resistance(ESR)	70KΩ Max
