YSR315S383

Fixed Frequencies: 315MHz
Dimensions: 3.8*3.8mm (3838)
Package: 1000 pieces/Reel
Support: Free samples available
ROHS STATUS: Compliant
Applications: Wireless remote control, Alarm
Consumer electroincs,communications

Item Unites Minimum Typical Minimum
Center Frequency MHz 314.925 315.000 315.075
Insertion Loss dB   1.5 2.2
Quality Factor Unload Q   8000 12800
50Ω Loaded Q   850 2000
Temperature Stability Turnover Temperature 10 25 40
Freq.temp.Coefficient ppm/ ℃2   0.037
Frequency Aging ppm/ yr   ≤10
DC. Insulation Resistance 1.0
RF Equivalent RLC Model Motional Resistance R1 Ω   17 26
Motional Inductance L1 μ H   109.28
Motional Capacitance C1 fF   2.3357
Transducer Static Capacitance C0 pF   2.7

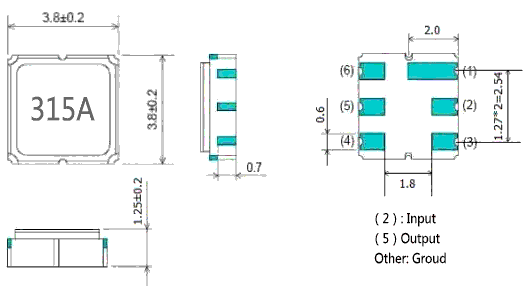

External dimensions




(Unit: mm)
