YSR315S303

Fixed Frequencies: 315MHz

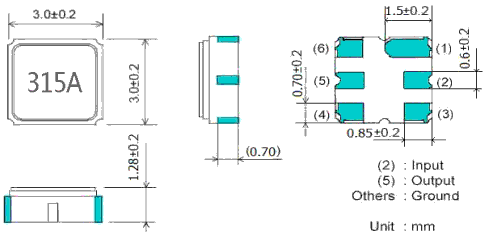

Dimensions: 3.0*3.0mm (3030)
Package: 1000 pieces/Reel
Support: Free samples available
ROHS STATUS: Compliant
Applications: Wireless remote control, Alarm
Consumer electroincs,communications

Sample Download PDF

Parameter Table

Item		Unites	Minimum	Typical	Minimum
Center Frequency		MHz	314.925	315.000	315.075
Insertion Loss		dB		1.4	1.9
Quality Factor	Unload Q		8000	12800
Quality Factor	50Ω Loaded Q		1000	2000
Temperature Stability	Turnover Temperature	℃	10	25	40
Temperature Stability	Freq.temp.Coefficient	ppm/ ℃²		0.032
Frequency Aging		ppm/ yr		≤10
DC. Insulation Resistance		MΩ	1.0
Transducer Static Capacitance C0		pF		2.13
