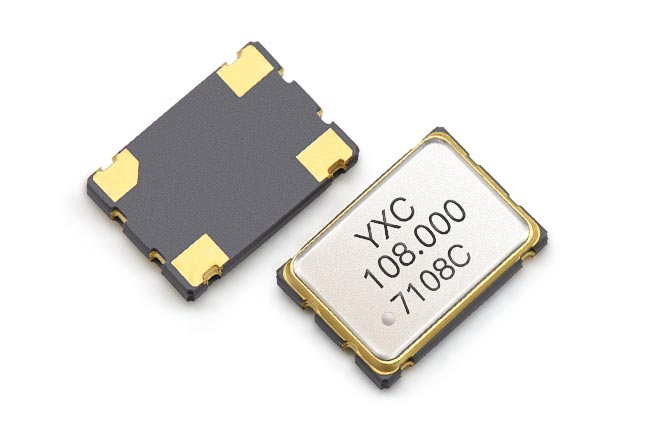

YSO680PR

Programmable Quartz Crystal Oscillator
Frequency Range:1MHz to 108MHz
Any frequency between 1MHz to 108MHz accurate to 6 decimal places
Dimensions: 2520,3225,5032,7050
Rohs Status: Compliant
High stability、Low Power

Parameter 1.8V 2.5V 3.3V
Frequency Range 1MHz to 108MHz 1MHz to 108MHz 1MHz to 108MHz
Supply Voltage Variation (Vdd)10% 1.62 V to 1.98 V 2.25 V to 2.75 V 2.97 V to 3.63 V
Standby Current 15μA
Frequency Tolerance ± 20 ppm, ± 30 ppm, ± 50 ppm, or specify
Output Load 15pF, or specify
Operating Temperature Range  - 40 ~ + 85 ℃, or specify
Storage Temperature Range -55 ~ +125 ℃
Voltage Vol ( Max. ) / Vol ( Min. ) VOH = 90%Vdd / VOL = 10%Vdd
Duty Cycle 45~ 55%
Start-up Time 10ms Max.
Supply Current See Below
Frequency Aging ( at 25 ℃ ) ± 3 ppm / year Max

Part Number Guide              OP7050108MEDA4SI -*
Oscillator Series Dimensions
(mm)
Frequency
(Hz)
Voltage
(V)
Stability
(ppm)
Output Pin Material Operating Temp  -  Remark
O P 7.5 x 5.0 108M E D A 4 S I - *

Pin Description


Pin      Symbol   Functionality
 1

OE/ST/NC  Output Enable  H : specified frequency output
 L : output is low. Specified frequency output stop
Standby  H : specified frequency output
 L: output is low. Device goes to sleep mode. Supply current reduces to 400uA (Standby Current).
No Connect  Pin 1 = VDD or Pin 1 is Open : Specified frequency output. Pin 1 has no function
2 GND Power  Electrical ground
3 OUT Output  Oscillator output
4 VDD Power  Power supply voltage

External Dimensions

                     2.5x2.0x0.90mm


                 3.2x2.5x0.9mm


      5.0x3.2x1.20mm


        7.0x5.0x1.40mm

(Unit: mm)
