YSO230LR

Quartz Crystal Differential Oscillator
Frequency range: 13.5MHz to 200MHz

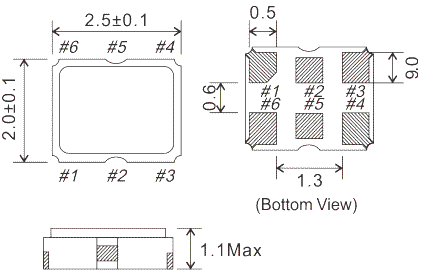

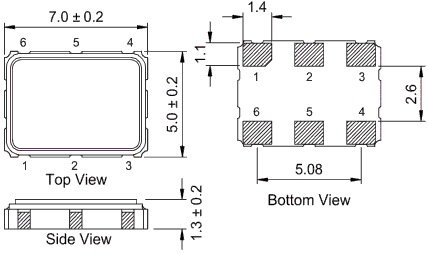

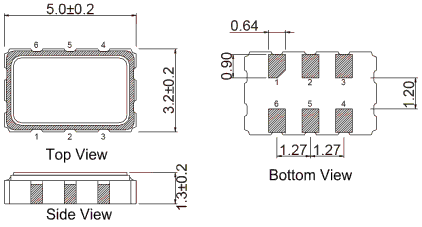

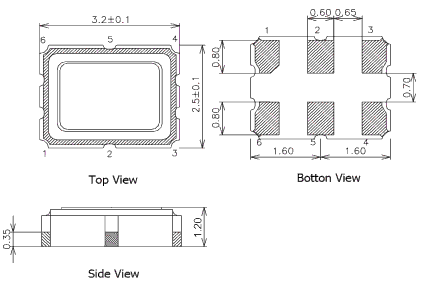

External dimensions: 2.5 x 2.0, 3 .2 x 2 .5, 5.0 x 3.2, 7.0 x 5.0mm
Rohs Status: Compliant
Applications: 10 GB Ethernet, SONET, SATA, SAS, Fibre Channel

Sample Download PDF

Parameter Table

Item / Type	LVPECL		LVDS		Remarks
	7.5x5.0 5.0x3.2	3.2x2.5 2.5x2.0	7.5x5.0 5.0x3.2	3.2x2.5 2.5x2.0
Output Frequency Range	13.5 to 200MHz	13.5 to 156.25MHz	13.5 to 200MHz	13.5 to 156.25MHz
Supply Voltage	2.5V to 3.3V		1.8V, 2.5V to 3.3V
Operating Temperature Range	-40 to +85 ℃
Storage Temperature Range	- 55 to + 125 ℃
Frequency Stability	± 50 ppm
Current	80mA Max	50mA Max	60mA Max	40mA Max	OE=Vcc, LVPECL=(50) Ω or LVDS=(100)Ω
Disable Current	10uA Max				OE=GND
Output Voltage (LVPECL)	VOH=Vcc-1.03 Min		-		DC characteristics
	VOL=Vcc-1.6 Max		-
Output Voltage (LVDS)	-		VOD=247 to 454mV		VOD1, VOD2
	-		VOD=50mV Max.		dVOD=丨 VOD1-VOD2 丨
	-		VOS=1.25V to 1.375V		VOS1, VOS2
	-		VOD=50mV Max.		dVOS=丨 VOS1-VOS2丨
Output Load Condition	L_PECL=50Ω		-		Terminated to Vcc-2.0V
	-		L_LVDS=100Ω		Connected between OUT to OUT
Input Voltage	VIH=70% VccMin, VIL=30%Vcc Max				OE terminal
Output Symmetry	45 to 55%
Rise Time/Fall Time	0.8ns Max.				LVPECL: Between 20% and 80% of (VOH-VOL), LVDS: Between 20% and 80% Differential Output peak to peak voltage
Start-up time	10mS Max				Time at minimum supply voltage to be 0s
Phase Jitter (12KHz~20MHz)	100MHz	125MHz	148.5MHz	156.25MHz	180MHz	200MHz
	0.3pS Typ.	0.1pS Typ.
Aging	±3ppm				25℃ First year, Vcc=2.5V, 3.3V
