YSO210PR

Quartz Programmable Differential Oscillator
Frequency range: 10MHz to 1500MHz
External dimensions: 3 .2 x 2 .5mm 5.0 x 3.2mm 7.0 x 5.0mm
Rohs Status: Compliant
Applications: 10 GB Ethernet, SONET, SATA, SAS, Fibre Channel

Item / Type LVPECL LVDS Remarks
Output Frequency Range 10MHz to 1500MHz
Supply Voltage 2.5Vdc ± 10%  3.3Vdc ± 10%
Operating Temperature Range -40 to +85 ℃
Storage Temperature Range - 55 to + 125 ℃
Frequency Stability ± 50 ppm
Input Resistance 1Mohms Typ
Current 80mA Max 50mA Max OE=Vcc, LVPECL=(50) Ω or LVDS=(100)Ω
Disable Current 16mA Typ OE=GND
Output Voltage (LVPECL) VOH=Vcc-1.03 Min - DC characteristics
VOL=Vcc-1.6 Max -
Output Voltage (LVDS) - VOD=175mV Min. VOD1, VOD2 DC characteristics
- VOD=50mV Min. dVOD=丨 VOD1-VOD2 丨
- VOS=1.25V Typ. VOS1, VOS2
- VOD=50mV Min. dVOS=丨 VOS1-VOS2丨
Output Load Condition L_PECL=50Ω - Terminated to Vcc-2.0V
- L_LVDS=100Ω Connected between OUT to OUT
Input Voltage VIH=70% VccMin, VIL=30%Vcc Max OE terminal
Output Symmetry 45 to 55%
Rise Time/Fall Time 1ns Max. LVPECL: Between 20% and 80% of (VOH-VOL),
LVDS: Between 20% and 80% Differential
Output peak to peak voltage
Start-up time 10mS Max Time at minimum supply voltage to be 0s
Phase Jitter (12KHz to 20MHz) 1.0pS Typ. 200MHz to 800MHz
2.0pS Typ. 801MHz to 1500MHz
Aging  ±3ppm 25℃ First year, Vcc=2.5V, 3.3V


Part Number Guide              OA322510.888MEDB6SI
Quartz
Crystal
Oscillator
Type
Code
Size
(mm)
Frequency
(Hz)
Voltage
(V)
Stabili
(ppm)
Output Pin Material Temperature
O A 3.2 x 2.5 10.888M E D B 6 S I

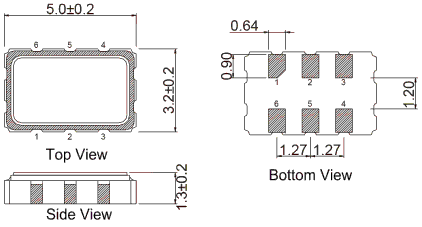

External dimensions
         3.2x2.5x1.20mm

         5.0x3.2x1.30mm

        7.0x5.0x1.30mm

(Unit: mm)
