YSF915S303

Frequency: 915Mhz
Dimensions: 3.0*3.0mm
Packge: 3000 pieces/Reel
Applications: emote-control security
Sample Download PDF
Parameter Table

  Unit Minimum Typical Maximum
 Center Frequency MHz - 915 -
 Insertion Loss (902~928MHz) dB   2.5 3.5
 Amplitude Ripple (902~928MHz) dB   0.9 1.8
 Relative Attenuation
 10.0 ~ 800.0 MHz
 800.0~845.0MHz
 845.0 MHz ~ 880.0 MHz
 947.0 MHz ~ 992.0 MHz
 992.0 MHz ~ 1020.0 MHz
 1020.0 MHz ~ 1200.0 MHz		 dB
45
40
33
25
35
45
55
50
43
35
45
50
 Input/Output Impedance Ohms   50

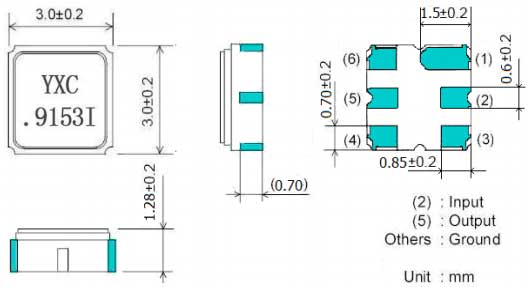

External dimensions



(Unit: mm)
