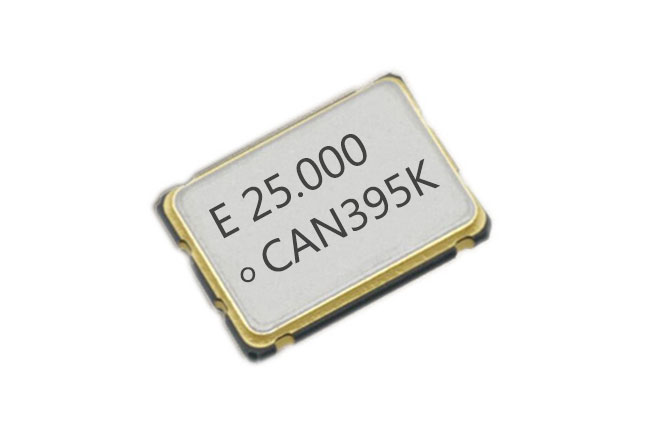

SG7050CCN

Frequency Range: 2.5-50MHz, CMOS output
Dimensions: 7.0*5.0mm
Package: 1000 pieces/Reel
ROHS STATUS: Compliant
PN: X1G004501000300
Applications: Wireless communication, PC and LCDM

Item Symbol SG7050CCN Conditions / Remarks
Output frequency range f0 2.5MHz to 50MHz Please contact us about available frequencies.
Supply voltage VCC H: 4.5 V to 5.5 V
Storage temperature T_stg -40°C to +125°C Storage as single product
Operating temperature T_use B: -20 °C to +70 °C
G: -40 °C to +85 °C
Frequency tolerance f_tol J: ±50 × 10-6
Current consumption ICC 20mA Max. No load condition Maximum frequency.
Disable current I_dis 10mA Max. OE=GND
Symmetry SYM 40 % to 60 % 50% VCClevel, L_CMOS ≦ 50 pF
Output voltage VOH VCC - 0.4V Min.
VOL 0.4V Max.
Output load condition(CMOS) L_CMOS 50 pF Max.
Input voltage VIH 80% VCC Min. OE terminal
VIL 20% VCC Min.
Rise time/
Fall time
tr / tf 5ns Max. 20 % VCC ~ 80 % VCClevel, L_CMOS ≦50 pF
Start-up time t_str 5ms Max. t=0 at 90 % VCC ,+85°C
Frequency aging f_aging ±5 × 10-6 / year Max. +25°C, First year.

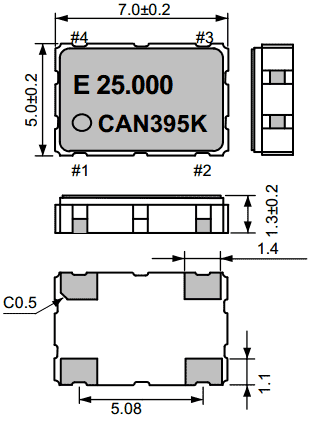

External dimensions





(Unit: mm)

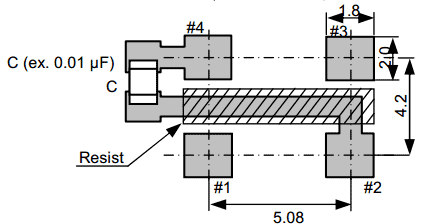

Footprint (Recommended)




(Unit: mm)​​​​​​​
