SG-310SCF

Frequency Range: 2 to 48MHz, CMOS output
Dimensions: 3.2*2.5mm (3225)
Package: 2000 pieces/Reel
ROHS STATUS: Compliant

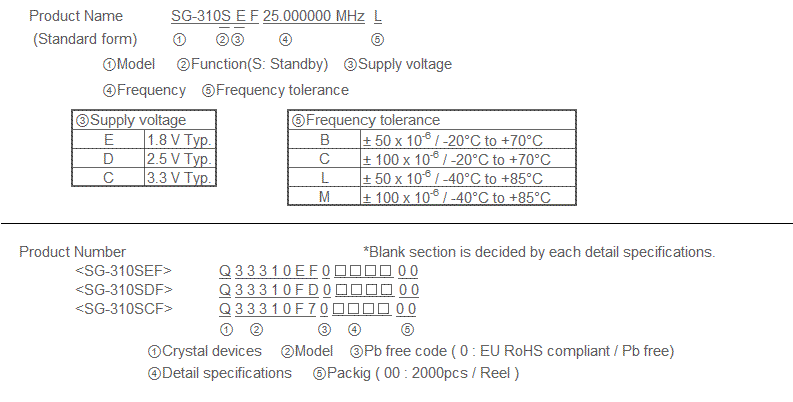

PN: SG-310SCF 25.0000MB0 Q33310F70049000 Q33310F70020200
Applications: Wireless communication, PC and LCDM
Sample Download PDF
Parameter Table

Item Symbol Specifications Condition/Remarks
SG-310 SEF SG-310 SDF SG-310 SCF
Output frequency range f0 2.000MHz to 48.000MHz
Supply voltage VCC 1.8V Typ.
1.6V to 2.2V		 2.5V Typ.
2.2V to 3.0V		 3.3V Typ.
2.7V to 3.6V
Storage temperature range T_stg -40°C to +125°C Store as bare product.
Operating temperature range T_use -40°C to +85°C
Frequency tolerance f_tol B: ±50 × 10-6
C: ±100 × 10-6		 -20°C to +70°C
L: ±50 × 10-6
M: ±100 × 10-6		 -40°C to +85°C
Current consumption ICC 1.5mA Max. 1.5mA Max. 1.5mA Max. No load condition,
2MHz ≦ f0 ≦ 4MHz
1.5mA Max. 1.5mA Max. 2.0mA Max. No load condition,
4MHz < f0 ≦ 8MHz
1.5mA Max. 2.0mA Max. 2.5mA Max. No load condition,
8MHz < f0 ≦ 16MHz
2.0mA Max. 2.0mA Max. 2.5mA Max. No load condition,
16MHz < f0 ≦ 25MHz
2.0mA Max. 2.5mA Max. 3.5mA Max. No load condition,
25MHz < f0 ≦ 33MHz
3.0mA Max. 3.5mA Max. 4.5mA Max. No load condition,
33MHz < f0 ≦ 48MHz
Stand-by current I_std 0.7µA Max.
(0.2µA Typ.)		 1.5µA Max.
(0.5µA Typ.)		 2.0µA Max.
(1.0µA Typ.)		 ST
Symmetry SYM 45% to 55% 45% to 55% 45% to 55% 2MHz ≦ f0 ≦ 16MHz 50% VCClevel
L_CMOS ≦ 15pF
40% to 60% 16MHz < f0 ≦ 40MHz
40% to 60% 40MHz < f0 ≦ 48MHz
Output voltage VOH 90% VCC Min. IOH=-3mA
VOL 10% VCC Max. IOL= 3mA
Output load condition
(CMOS)		 L_CMOS 15pF Max.
Input voltage VIH 80% VCC Min. ST
VIL 20% VCC Max.
Rise time / Fall time tr / tf 4ns Max. 20% VCC to 80% VCC level,
L_CMOS=15pF
Start-up time t_str 10ms Max. t=0 at 90% VCC
Frequency aging f_aging ±5 × 10-6 / year Max. +25°C,First year,
VCC=1.8V,2.5V, 3.3V




Motional resistance (ESR)


Frequency Motional resistance
16.0MHz ≤ f_nom < 18.0MHz 200Ω Max.
18.0MHz ≤ f_nom < 20.0MHz 150Ω Max.
20.0MHz ≤ f_nom < 24.0MHz 100Ω Max.
24.0MHz ≤ f_nom < 26.0MHz 80Ω Max.
26.0MHz ≤ f_nom ≤ 54.0MHz 60Ω Max.

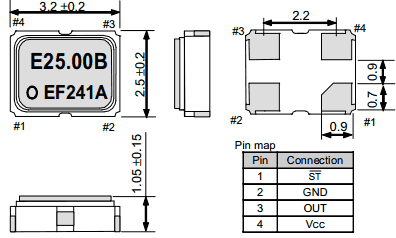

External dimensions



(Unit: mm)

Note.
ST pin = HIGH or "open" : Specified frequency output.
ST pin = LOW : Output is high impedance, oscillation stops.

Footprint (Recommended)




(Unit: mm)

To maintain stable operation, provide a 0.01uF to 0.1uF by-pass capacitor at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND).
