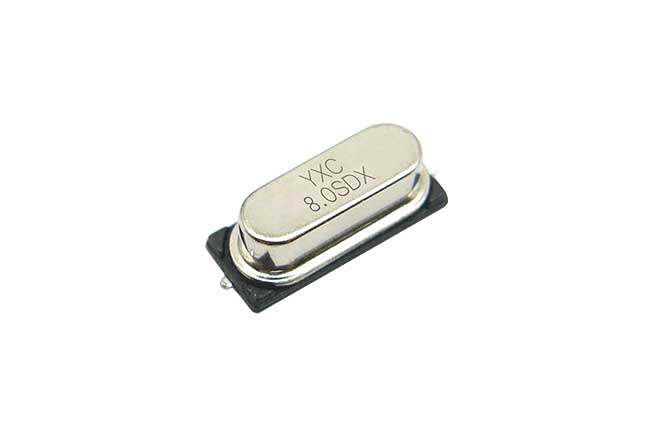

HC-49XSMD

Frequency Range: 8MHz to 50MHz
Package: 3000 pieces/Reel
Promise: Lifetime Warranty And Technical Support
Support: Free Samples Available
Rohs Status: Compliant
Sample Download PDF
Parameter Table

Item / Type HC-49XSMD
Nominal Frequency Range 8 ~ 50 MHz
Vibration Mode AT Fundamental
Load Capacitance 12pF, 20pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm,± 20 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify
Storage Temperature -40 ~ +85 ℃, or specify
Shunt Capacitance 5 pF Max.
Level of Drive 0.01 ~ 1000 μW
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.

Part Number Guide             X49XM12MSD2SC
Quartz Crystal Resonator Dimensions Frequency
(Hz)		 Load Capacitance
(pF)		 Frequency Stability
(ppm)		 Pin Material Operating Temp
X 49XM 12M S D 2 S C

Equivalent Series Resistance(ESR)

Fundamental
8.0 to 11.999 MHz 80 Ω Max.
12 to 15.999 MHz 60 Ω Max.
16 to 19 MHz 50 Ω Max.
20 to 50 MHz 40 Ω Max.

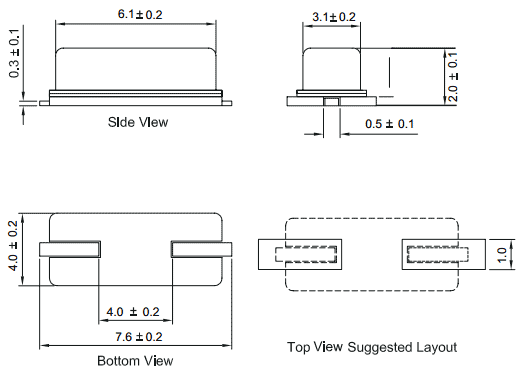

External dimensions



(Unit: mm)
