HC-49XS

Frequency Range: 8-50MHz
Support: Free Samples Available
ROHS STATUS: Compliant
Applications: PC, STB, LCDM, and Cable Modem
Sample Download PDF
Parameter Table

Item / Type HC-49XS
Nominal Frequency Range 8MHz to 50MHz
Vibration Mode AT Fundamental
Load Capacitance 12 pF, 20 pF, or specify
Frequency Tolerance (at 25 ℃) ± 10 ppm, ± 20 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify
Storage Temperature - 40 ~ + 85 ℃, or specify
Shunt Capacitance 5pFMax
Level Drive 0.01~ 1000μW
Frequency Aging (at 25 ℃) ± 3 ppm / year Max

Part Number Guide             X49XD12MSD2SC
Quartz Crystal Resonator Dimensions Frequency
(Hz)		 Load Capacitance
(pF)		 Frequency Stability
(ppm)		 Pin Material Operating Temp
X 49XD 12M S D 2 S C


Equivalent Series Resistance(ESR)


Fundamental
8.0 to 11.999 MHz 80 Ω Max.
12 to 15.999 MHz 60 Ω Max.
16 to 19 MHz 50 Ω Max.
20 to 50 MHz 40 Ω Max.

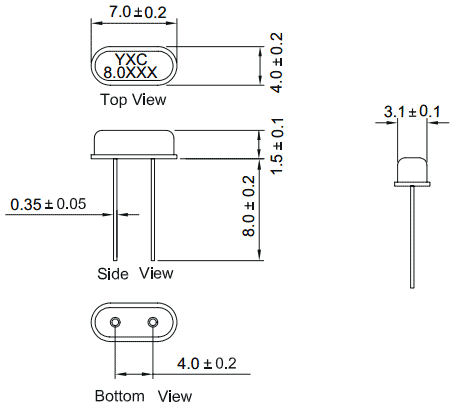

External dimensions



(Unit: mm)
