FA-20H

Frequency range: 12.0000-54.0000MHz
Hot-sale frequencies: 16MHz, 25MHz, 32MHz
Dimensions: 2.5*2.0mm (2520)
ROHS STATUS: Compliant

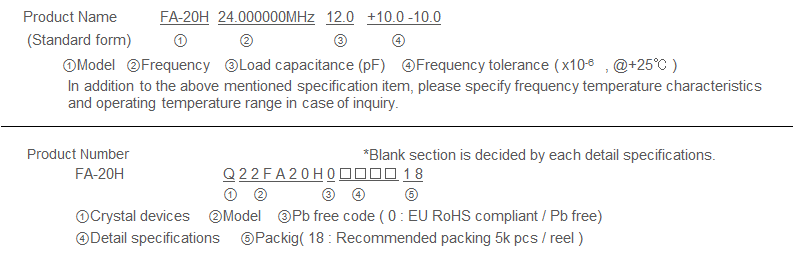

PN: FA-20H 16.0000MF10Z-AC Q24FA20H0004400
Applications: Mobile phone, Bluetooth, W-LAN ISM band radio
Sample Download PDF
Parameter Table

Item Symbol Specifications Condition/Remarks
For RF Reference For Clock
Nominal frequency range f_nom 12.000MHz to 54.000MHz Fundamental Please contact us for inquiries regarding the available frequencies.
Storage temperature range T_stg -40°C to +125°C Store as bare product.
Operating temperature range T_use -40°C to +85°C (+105 °C) Please contact us about +85 °C < T_use
Level of drive DL 100µW Max. 200µW Max. Recommended: 1µW to 100µW
Frequency tolerance f_tol ±10 × 10-6*1 ±30 × 10-6 +25°C Please contact us for inquiries.
Frequency versus temperature characteristics f_tem ±10 × 10-6*1 ±30 × 10-6 -20°C to +75°C Please contact us for inquiries.
Load capacitance CL 6pF to ∞ Please specify.
Motional resistance
(ESR)		 R1 As per below table -20°C to +75°C
Frequency aging f_age ±1 × 10-6 to ±3 × 10-6 / year Max. *1 +25°C, First year




Motional resistance (ESR)


Frequency Motional resistance
12.0MHz ≤ f_nom < 16.0MHz 150Ω Max.
16.0MHz ≤ f_nom ≤ 25.0MHz 80Ω Max.
25.0MHz < f_nom ≤ 30.0MHz 60Ω Max.
30.0MHz < f_nom ≤ 35.0MHz 50Ω Max.
35.0MHz < f_nom ≤ 54.0MHz 40Ω Max.

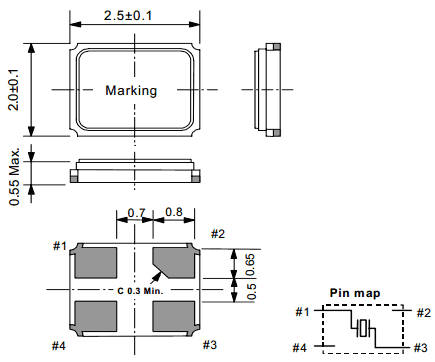

External dimensions


(Unit: mm)
#2 and #4 are connected to the cover (Please connect to ground)


Footprint (Recommended)



(Unit: mm)
